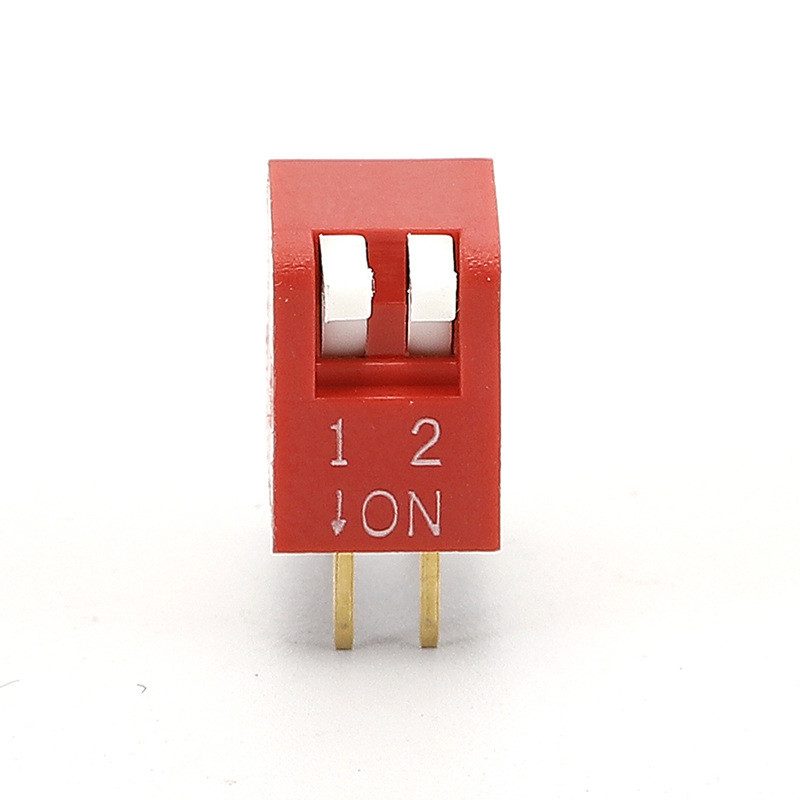

Dp-2 Red Case Golden Pins DIP Dial Code Switch Good Quality 3 Buyers
Black 3 Position PIANO Type SPST 2.54mm Pitch SMD Gull Wing DIP Switch
Waterproof Electronic Dip Switch 8 Position 5P Single Pole Single Throw 2.54 Pitch Piano Type Dip Swit
4 DIP switch, also known as finger switch, is a switch that can be manually adjusted, mostly several switches
in a group, in the form of a standard dual-in-line package (DIP) package. The term "DIP switch" can refer to
individual switches or a whole group of switches. The DIP switch is designed to be used with other electronic
components on a printed circuit board to adjust the characteristics of the electronic device.
DIP switches'n Features
1 Multiple Occasions, with multi-gear structure design, switch slide power evenly, good sense of paragraph
2 Fire Retardant, UL94-V0 injection molding, strong pressure resistance
3 Link Contacts, small contact resistance, reliable and stable
4 Appearance is clean, solid and stable
5 Convenient installation
DIP Switch's Specification
| MECHANICAL | | 1).Operation Force | 1000gf max. | | 2).Stroke | 2.00mm | | 3).Operation Temp | -40deg C to 85deg C | | 4).Storage Temp | -40deg C to 85deg C | | 5).Positions | 3 position | | ELECTRICAL | | 1).Electrical Life | 2000 operations cycles | | 2).Non-Switching Rating | 100mA, 50VDC | | 3).Switching rating | 25mA, 24VDC | | 4).Contact Resistance | 50mOhms max. at initial;100mOhms max.after life test. | | 5).Insulation Resistance | 100MOhms,500VDC | | 6).Dielectric Strength | 500VAC/1 minute | | 7).Circuit | SPST | |
Dip switch as a manual operation of a micro switch, dip switch in communication, security and many other
equipment products are widely used. There are two pins ON the back of each key corresponding to the dip
switch, to the ON side, then the following two pins through; Otherwise disconnect. These four keys are
independent and have nothing to do with each other. This type of device is mostly used for binary coding.
KKG electric CO.,LTD. is a company devotes itself to researching and manufacturing the components
such as switches, sockets and connectors. The Production of Products mainly used in computer products,
consumer electronics, electrical & electronics, industrial equipment & components......
So far,KKG set up own factory ,Processing factory,OEM factory and sales company in mainland China,
Taiwan(China) and Hong Kong .
During this time, the company had won many awards. Just like the industry first prize for the ISO9001
and the quality management.
1 More than 2,000 models of switches and sockets.
2 Monthly production capacity: 30 million pieces.
3 MOQ: 5,000pcs, it’s negotiable.
4 Good quality with competitive price.
5 We can offer free samples with shipping and taxes pay by the buyer.
6 Various operation force, height, and color for your choice.
7 The discount depends on your order quantity.
Q: Are you a factory or trading company?
A: We are a factory, our price is competitive.welcome to visit our factory.
Q: How about your quality control?
A: All the products will be 100% checked before the shipment.
Q: How could I get a sample?
A: Free sample,you can take it from our office by your express delivery or pay express fee to us to send you.
Q: What is your warranty ?
A: Within 90 days after shipment if quality problem we will solve it well or we accept return of goods and refund your money .
Q: Shipping
A: UPS / Fedex / DHL / TNT / EMS. or pls contact us directly which way your preferred.
