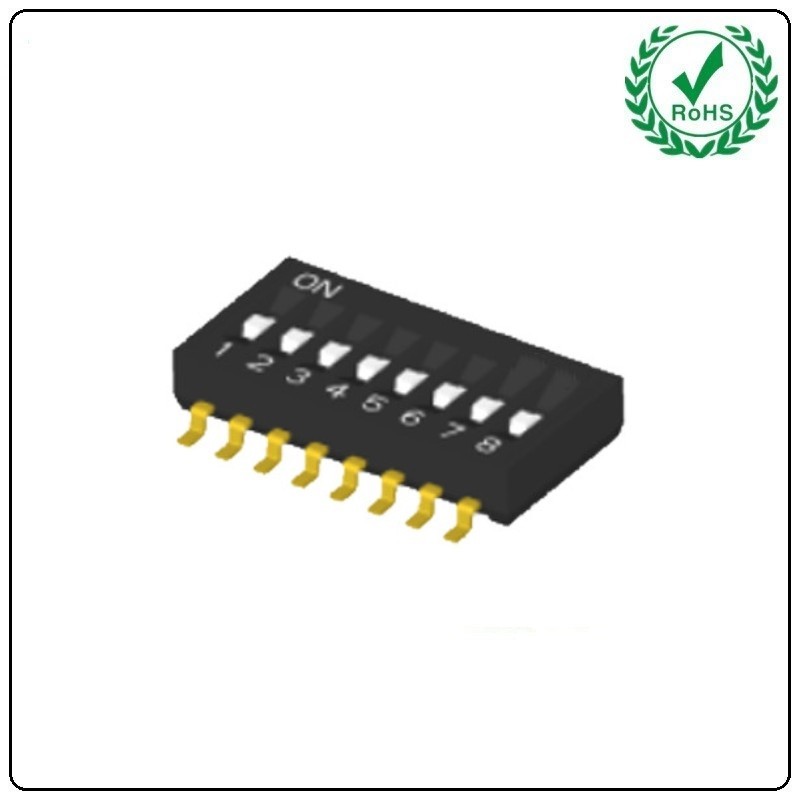

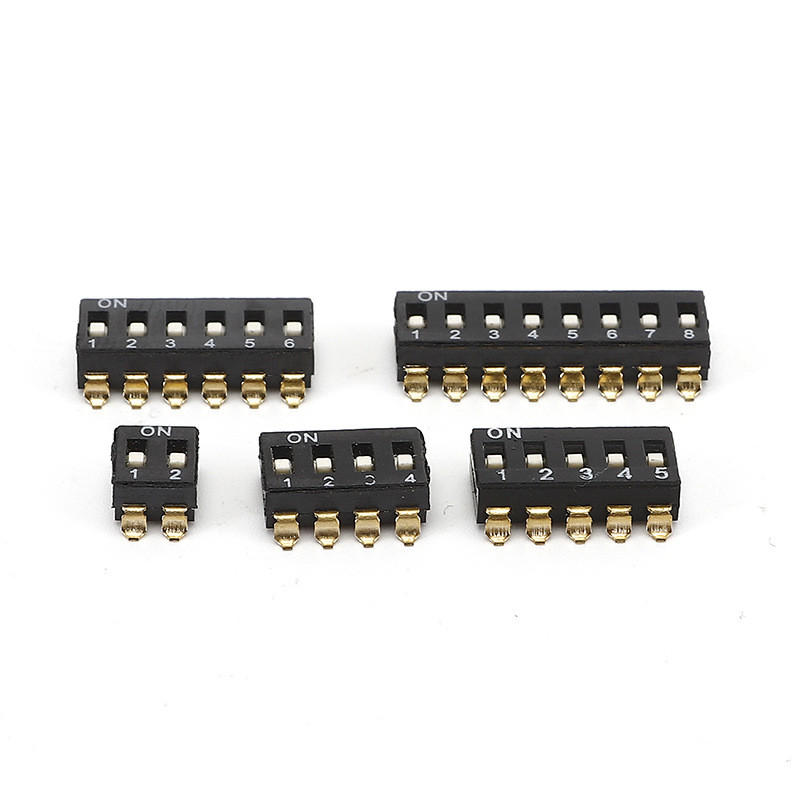

Black 3 Position PIANO Type SPST 2.54mm Pitch SMD Gull Wing DIP Switch
A tri-state type DIP switch can be in one of three positions (+, 0, -) which allows more codes than a binary
DIP switch. For example, 8 pole tri-state DIP switches offer 6,561 (38) combinations/codes compared to 8
pole binary DIP switches' 256 (28) combinations/codes. This makes DIP switches especially suitable for
encoding devices such as a remote controller.
DIP switches'n Features
1 Multiple Occasions, with multi-gear structure design, switch slide power evenly, good sense of paragraph
2 Fire Retardant, UL94-V0 injection molding, strong pressure resistance
3 Link Contacts, small contact resistance, reliable and stable
4 Appearance is clean, solid and stable
5 Convenient installation
DIP Switch's Specification
| MECHANICAL | | 1).Operation Force | 1000gf max. | | 2).Stroke | 2.00mm | | 3).Operation Temp | -40deg C to 85deg C | | 4).Storage Temp | -40deg C to 85deg C | | 5).Positions | 3 position | | ELECTRICAL | | 1).Electrical Life | 2000 operations cycles | | 2).Non-Switching Rating | 100mA, 50VDC | | 3).Switching rating | 25mA, 24VDC | | 4).Contact Resistance | 50mOhms max. at initial;100mOhms max.after life test. | | 5).Insulation Resistance | 100MOhms,500VDC | | 6).Dielectric Strength | 500VAC/1 minute | | 7).Circuit | SPST | |
Dip switch as a manual operation of a micro switch, dip switch in communication, security and many other
equipment products are widely used. There are two pins ON the back of each key corresponding to the dip
switch, to the ON side, then the following two pins through; Otherwise disconnect. These four keys are
independent and have nothing to do with each other. This type of device is mostly used for binary coding.
KKG electric CO.,LTD. is a company devotes itself to researching and manufacturing the components
such as switches, sockets and connectors. The Production of Products mainly used in computer products,
consumer electronics, electrical & electronics, industrial equipment & components......
So far,KKG set up own factory ,Processing factory,OEM factory and sales company in mainland China,
Taiwan(China) and Hong Kong .
During this time, the company had won many awards. Just like the industry first prize for the ISO9001
and the quality management.
1 More than 2,000 models of switches and sockets.
2 Monthly production capacity: 30 million pieces.
3 MOQ: 5,000pcs, it’s negotiable.
4 Good quality with competitive price.
5 We can offer free samples with shipping and taxes pay by the buyer.
6 Various operation force, height, and color for your choice.
7 The discount depends on your order quantity.
Q1. What‘s your delivery time?
A1. For those models frequently demended, we usually keep a certain quantity in stock for immediate
despatch. For others, lead time is usually a few days only.
Q2. Are you a factory or a trading company?
A2. We are the leading manufacturer. Why not conatct us now to discover original factory prices!
Q3. How about the quality?
A3. All our products are 100% tested before delivery. Durable quality is guaranteed.
Q4. Can I have samples?
A4. Yes, we offer free samples provided that you can bear express charge.
Q5. What is the shipping cost?
A5. Depending upon the quantity and the destination.
For more information kindly contact as below :
Contact person: Miss Vicky Xie
Email:kkg@kkg
Tel: 0086-0769-82036866
Whatapp: 13377785035
