SMD 4 Pin Push Button Micro Switch Side Press 3.5mm Size Middle Tact Switch

KKG Electric Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

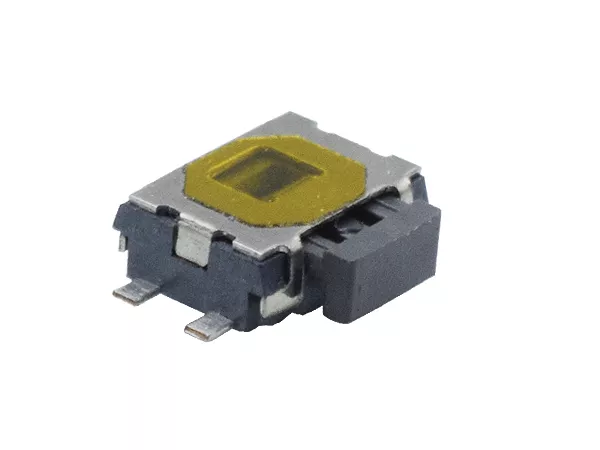

SMD 4 Pin Push Button Micro Switch Side Press 3.5mm Size Middle Tact Switch

  • 1
  • 2
  • 3

Brand Name : KKG

Model Number : TK-034DA

Place of Origin : China

MOQ : 500pcs

Delivery Time : 3-5Days

Full travel : 0.25±0.1mm

Rated voltage : 12V

LED : No

Rated current : 10mA

Operating Force : 260gf

Life : 50,000 cycles

Operation Temperature : -20℃—+70℃

Protection Level : IP67

Certification : ROHS

Color : Gold

Contact Resistance : ≤100mΩ

Insulation Resistance : ≥100mΩ

Withstand voltage : 250V

Whether the smart : NO

Contact Now

Turtle Type Tact Switch Side Press SMD 4 Pin Film Button Switch

1.KKG factory with high standard in product quality control;

2.We are certificated by ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc.

3.Our customers from all over the world, like US, UK,Japan, Germany, Argentina, Mexico, Singapore

4.One-stop Service for Customers

KKG Electronics | worth your trust

SMD 4 Pin Push Button Micro Switch Side Press 3.5mm Size Middle Tact Switch

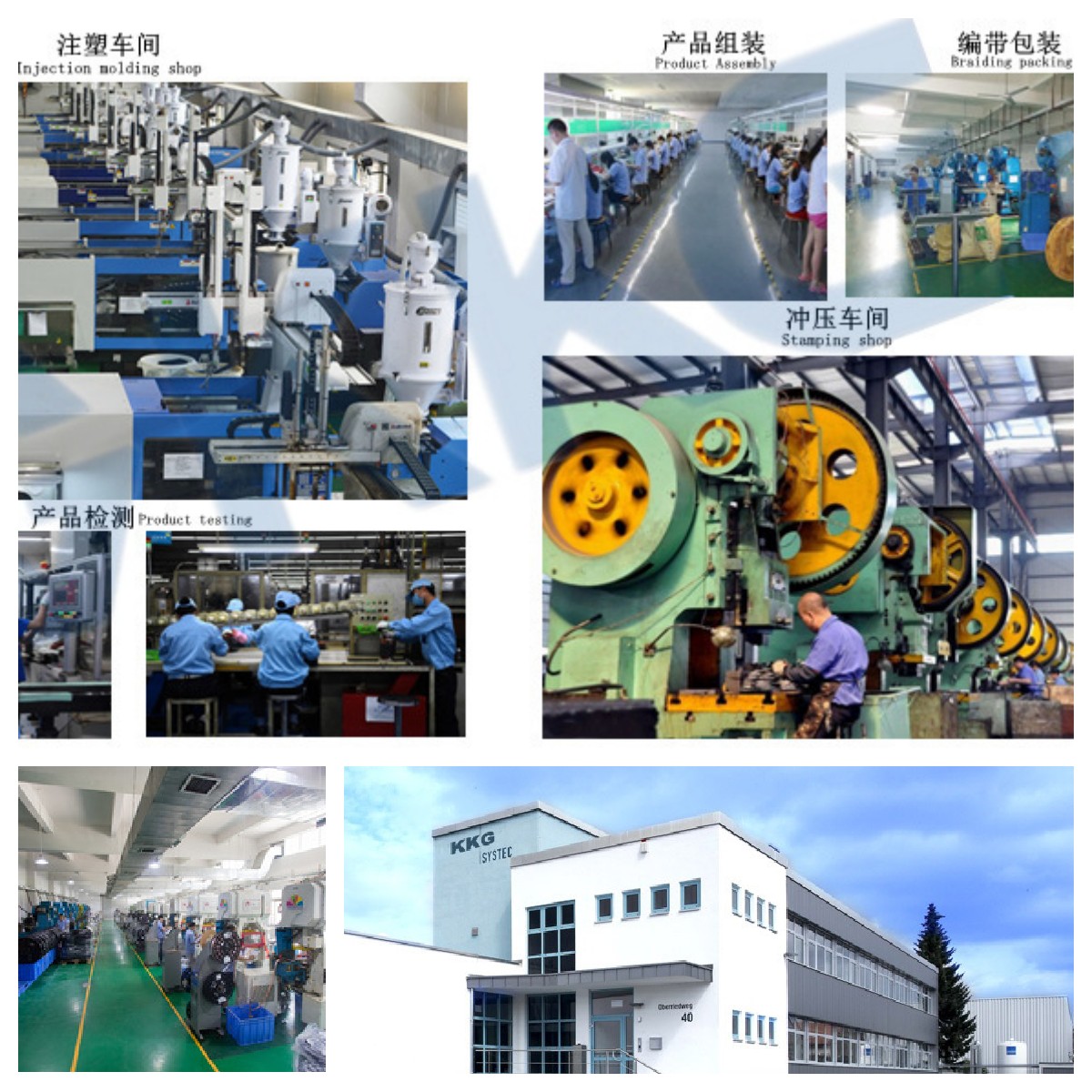

KKG electric CO.,LTD. is a company which devotes itself to researching and manufacturing

the components such as switches, sockets and connectors. The Production of Products mainly

used in computer products, consumer electronics, electrical & electronics, industrial equipment

& components......

So far,KKG set up own factory ,Processing factory,OEM factory and sales company in mainland

China, Taiwan(China) and Hong Kong .

During this time, the company had won many awards. Just like the industry first prize for the

ISO9001 and the quality management.

SMD 4 Pin Push Button Micro Switch Side Press 3.5mm Size Middle Tact Switch

Product Name TSD4A EVQPTJ01B/EVQP3701K/EVQP7J01K 3.5*4.7*1.7 4 pin side press middle tact switch
Model TSD4A EVQPTJ01B/EVQP3701K/EVQP7J01K
Cycle 50,000 cycles
Operating Temperature
-25℃~+70℃
Rated voltage 12V
Operating Force 300gf±100gf
Current Rating 50mA
Full Travel 0.25±0.1mm

SMD 4 Pin Push Button Micro Switch Side Press 3.5mm Size Middle Tact Switch

SMD 4 Pin Push Button Micro Switch Side Press 3.5mm Size Middle Tact Switch

SMD 4 Pin Push Button Micro Switch Side Press 3.5mm Size Middle Tact Switch

SMD 4 Pin Push Button Micro Switch Side Press 3.5mm Size Middle Tact Switch

Q1.Are you a factory or trading company?
A1.We are a factory, we can guarantee our price is first-hand, not expensive and competitive.


Q2.How does your factory do regarding quality control?
A2.All the products will be 100% checked before the shipment.


Q3.When can I get the price?
A3.Usually we quote within 24 hours after we get your inquiry.


Q4.How could I get a sample?
A4.if you can not buy our product in your local area, we will ship a sample to you.You will be

charged a sample price plus all related shipping costs. Express delivery charge depends on

the quantity of the samples.


Q5.What is the price of shipping?
A5.Depending upon the port of delivery, prices varies.
